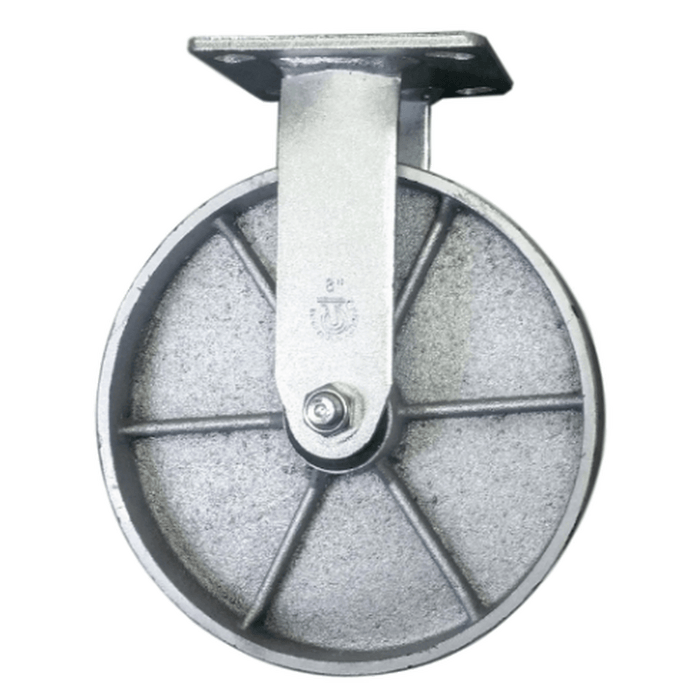

8" x 2" Semi-Steel Wheel Rigid Caster - 1250 lbs. capacity
8" x 2" Semi-Steel Wheel Rigid Caster - 1250 lbs. capacity
Product Overview
Semi-Steel offers a strong, durable, cost effective solution of heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.
Tread & Core: Steel Alloy This caster is listed with wheel diameter 8", tread width 2", load capacity 1,250 Lbs., tread type Steel Alloy, and bearing type Roller Bearing. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 1,250 Lbs.
- Wheel Diameter: 8"
- Tread Width: 2"
- Tread: Steel Alloy
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,250 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Steel Alloy wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,250 Lbs, the equipment requires a wheel other than 8" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 1,250 Lbs. |
| Wheel Diameter | 8" |
| Tread Width | 2" |
| Tread Type | Steel Alloy |
| Core Type | Steel Alloy |
| Bearing Type | Roller Bearing |
| Wheel Color | Silver |
| Overall Height | 9-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Tensile Strength | 30,000 PSI |
| Temperature Range | -45° F to 600° F |
| Model / MPN | 28SS80JS0417YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 600° F.
