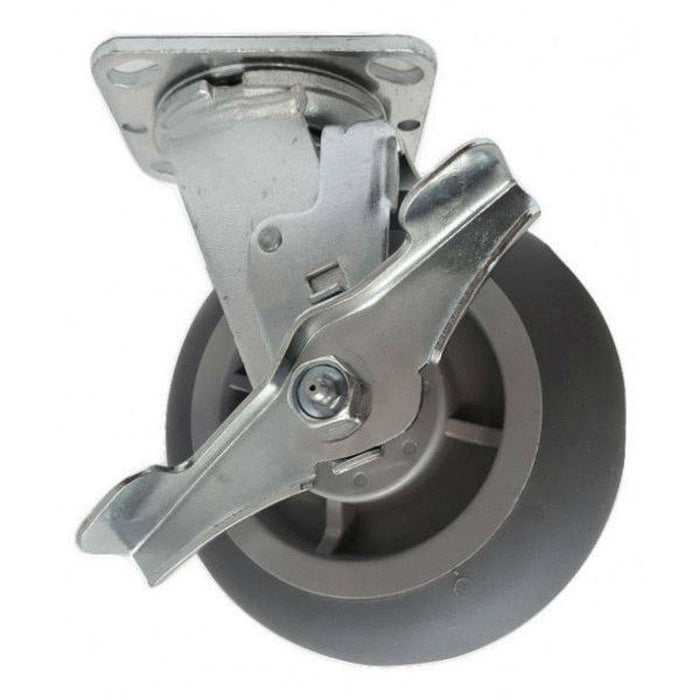

6" x 2" Thermo-Pro Wheel Swivel Caster W/ Brake - 500 lbs. capacity
6" x 2" Thermo-Pro Wheel Swivel Caster W/ Brake - 500 lbs. capacity
Product Overview
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber This caster is listed with wheel diameter 6", tread width 2", load capacity 500 Lbs., tread type Non-Marking Thermoplastic Rubber, and bearing type Roller Bearing.
Key Features
- Load Capacity: 500 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: Non-Marking Thermoplastic Rubber
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 500 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Non-Marking Thermoplastic Rubber wheel or tread
Not Ideal For
Not ideal when the load exceeds 500 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a different brake or lock style is required instead of Top Lock Brake 4-Position & Top Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Wheel Color | Gray on Gray |
| Load Capacity | 500 Lbs. |
| Overall Height | 7" |
| Bearing Type | Roller Bearing |
| Plate Size | 4" x 4-1/2" |
| Lock Type | Top Lock Brake 4-Position & Top Lock Brake |
| Tread Type | Non-Marking Thermoplastic Rubber |
| Core Type | Solid Polyolefin Core |
| Swivel Radius | 4-15/32" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 27TP60JX0417TY | Lock Option: Top Lock Brake |
| 27TP60JX0417PT | Lock Option: 4-Position & Top Lock Brake |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Top Lock Brake 4-Position & Top Lock Brake.
