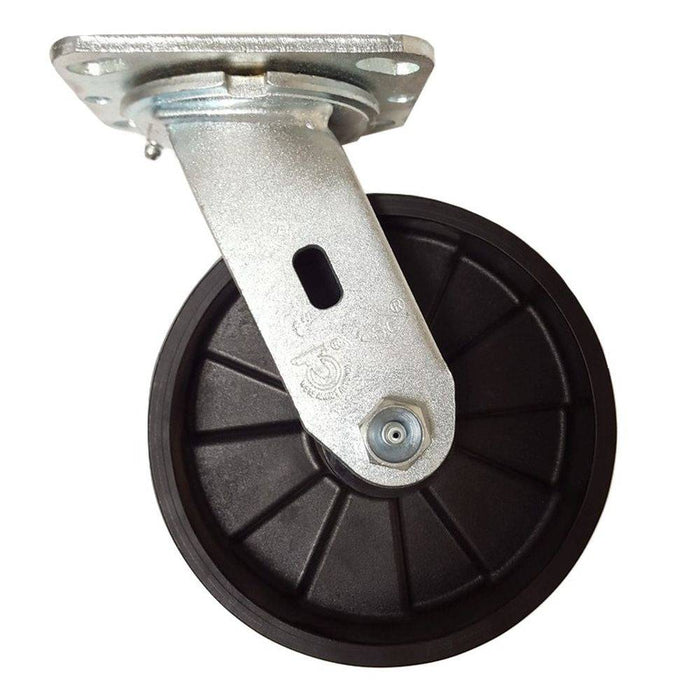

6" x 2" MaxRok Wheel Swivel Caster - 1200 lbs. Capacity
6" x 2" MaxRok Wheel Swivel Caster - 1200 lbs. Capacity
Product Overview
Maxrok wheels are made from glass-filled nylon, providing incredible impact strength and a fairly high load capacity for the weight and price. The hard tread does not provide floor protection, but these wheels excel in outdoor applications. The nylon compound is resistant to grease, oil, and most chemical and cleaning solutions.
Tread & Core: Glass-Filled Nylon This caster is listed with wheel diameter 6", tread width 2", load capacity 1,200 Lbs., tread type Glass-Filled Nylon, and bearing type Ball Bearing.
Key Features
- Load Capacity: 1,200 Lbs.
- Wheel Diameter: 6"
- Tread Width: 2"
- Tread: Glass-Filled Nylon
- Bearing: Ball Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,200 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Glass-Filled Nylon wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,200 Lbs, the equipment requires a wheel other than 6" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 1,200 Lbs. |
| Wheel Diameter | 6" |
| Tread Width | 2" |
| Tread Type | Glass-Filled Nylon |
| Core Type | Glass-Filled Nylon |
| Bearing Type | Ball Bearing |
| Wheel Color | Black |
| Overall Height | 7-1/2" |
| Swivel Radius | 4-9/16" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 85 (+/-5) |
| Temperature Range | -45° F to 190° F (up to 350° F, when used with all metallic bearings and high-temp grease) |
| Model / MPN | 27MA60JB6017YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 190° F (up to 350° F, when used with all metallic bearings and high-temp grease).
