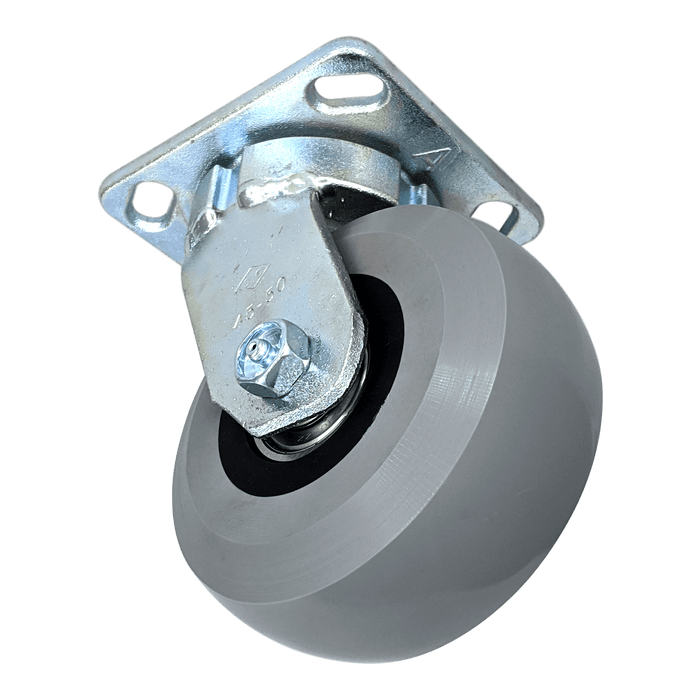

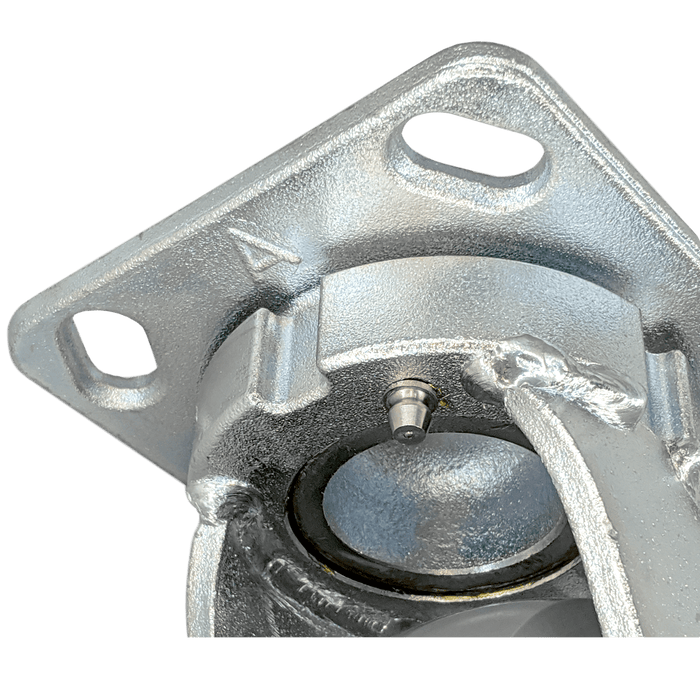

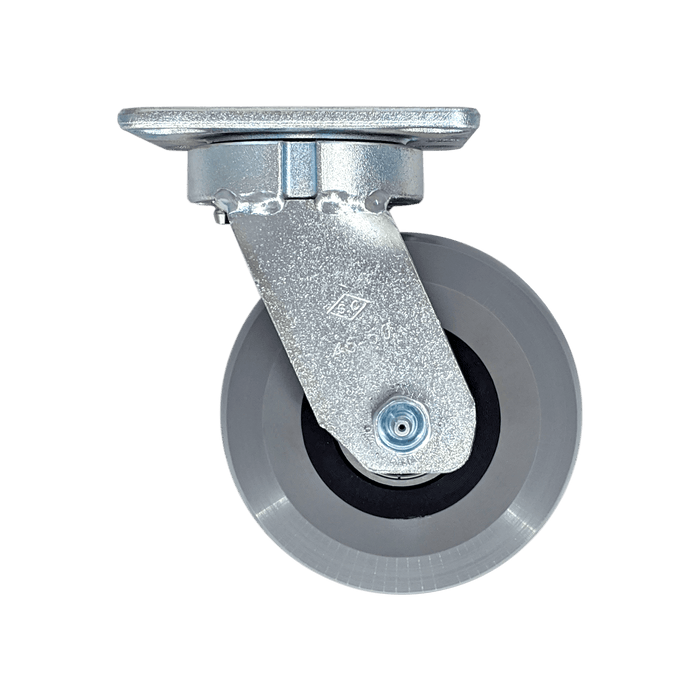

5" x 2" Ergolastomer Wheel Kingpinless Swivel Caster - 1400 lbs. capacity
5" x 2" Ergolastomer Wheel Kingpinless Swivel Caster - 1400 lbs. capacity
Product Overview
The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.
Tread: Solid Cast Polyurethane Elastomer, Non-Marking This caster is listed with wheel diameter 5", tread width 2", load capacity 1,400 Lbs., tread type Solid Cast Polyurethane Elastomer, Non-Marking, and bearing type Sealed Precision Bearing.
Key Features
- Load Capacity: 1,400 Lbs.
- Wheel Diameter: 5"
- Tread Width: 2"
- Tread: Solid Cast Polyurethane Elastomer, Non-Marking
- Bearing: Sealed Precision Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 1,400 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Solid Cast Polyurethane Elastomer, Non-Marking wheel or tread
Not Ideal For
Not ideal when the load exceeds 1,400 Lbs, the equipment requires a wheel other than 5" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 1,400 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 2" |
| Tread Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Core Type | Glass Filled Nylon Bearing Collar |
| Bearing Type | Sealed Precision Bearing |
| Wheel Color | Gray |
| Overall Height | 6-1/2" |
| Swivel Radius | 4" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Durometer | Shore D 68 (+/-5) |
| Temperature Range | -50° F to 180° F |
| Model / MPN | 45HU50JI6417YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -50° F to 180° F.
