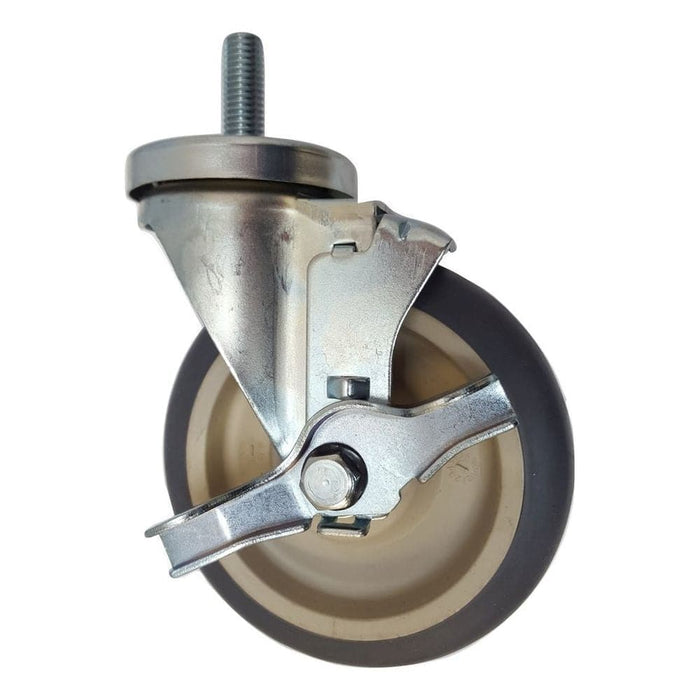

5" x 1-1/4" Thermo-Pro Threaded Swivel Stem Caster, Brake (1/2") 300 lbs. Cap
5" x 1-1/4" Thermo-Pro Threaded Swivel Stem Caster, Brake (1/2") 300 lbs. Cap
Product Overview
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 300 Lbs., tread type Non-Marking Thermoplastic Rubber, and bearing type Ball Bearing.
Key Features
- Load Capacity: 300 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: Non-Marking Thermoplastic Rubber
- Bearing: Ball Bearing
- Stem: - 1/2" NC13 x 1" - 1/2" NC13 x 1-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and - 1/2" nc13 x 1" - 1/2" nc13 x 1-1/2" stem or adapter
- Loads within the listed 300 Lbs rating
- Equipment using the listed - 1/2" NC13 x 1" - 1/2" NC13 x 1-1/2" stem or adapter
- Applications needing the listed Non-Marking Thermoplastic Rubber wheel or tread
Not Ideal For
Not ideal when the load exceeds 300 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed - 1/2" NC13 x 1" - 1/2" NC13 x 1-1/2" stem or adapter, or a different brake or lock style is required instead of Total Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, stem size, and overall height match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Tread Type | Non-Marking Thermoplastic Rubber |
| Core Type | Solid Polyolefin Core |
| Bearing Type | Ball Bearing |
| Wheel Color | Gray and Beige |
| Overall Height | 6" |
| Swivel Radius | 4" |
| Lock Type | Total Lock Brake |
| Durometer | Shore A 75 (+/-5) |
| Temperature Range | -20° F to 180° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 21TP50GY4768TY | Stem Size: 1/2"D x 1-1/2"L Stem |
| 21TP50GY4767TY | Stem Size: 1/2"D x 1"L Stem |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and - 1/2" NC13 x 1" - 1/2" NC13 x 1-1/2" stem or adapter.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Total Lock Brake.
