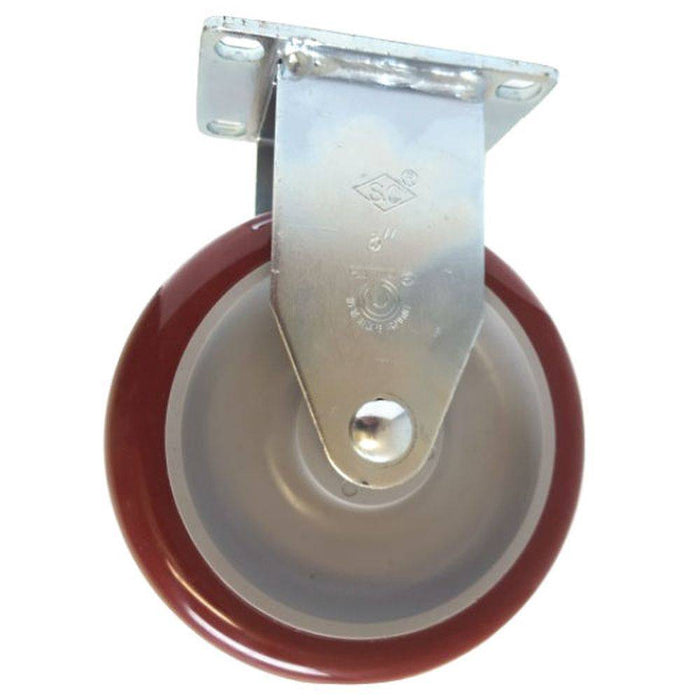

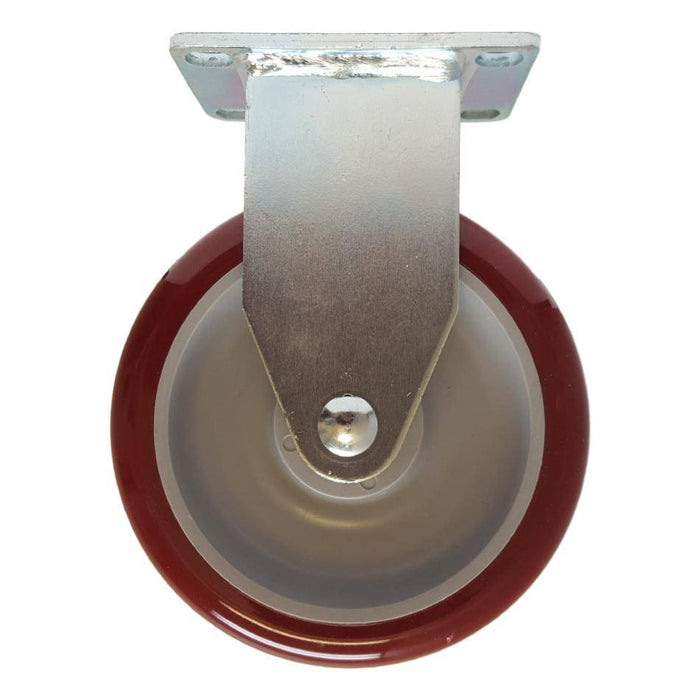

5" x 1-1/4" Polymadic Wheel Rigid Caster - 340 lbs. capacity
5" x 1-1/4" Polymadic Wheel Rigid Caster - 340 lbs. capacity
Product Overview
The polymadic wheel provides plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These wheels work well for most hard-floor applications due to the high-performance UV resistant materials used.
Tread: High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core This caster is listed with wheel diameter 5", tread width 1-1/4", load capacity 350 Lbs., tread type High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core, and bearing type Ball Bearing.
Key Features
- Load Capacity: 350 Lbs.
- Wheel Diameter: 5"
- Tread Width: 1-1/4"
- Tread: High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core
- Bearing: Ball Bearing
- Mounting Plate: - 2-3/8" x 3-5/8" - 3-1/8" x 4-1/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and - 2-3/8" x 3-5/8" - 3-1/8" x 4-1/8" plate with - 1-3/4" x 2-7/8" slotted to 3" - 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" bolt-hole pattern
- Loads within the listed 350 Lbs rating
- Equipment using the listed - 2-3/8" x 3-5/8" - 3-1/8" x 4-1/8" plate with - 1-3/4" x 2-7/8" slotted to 3" - 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" bolt-hole pattern
- Applications needing the listed High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core wheel or tread
Not Ideal For
Not ideal when the load exceeds 350 Lbs, the equipment requires a wheel other than 5" diameter by 1-1/4" tread width, the mounting does not match the listed - 2-3/8" x 3-5/8" - 3-1/8" x 4-1/8" plate with - 1-3/4" x 2-7/8" slotted to 3" - 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 350 Lbs. |
| Wheel Diameter | 5" |
| Tread Width | 1-1/4" |
| Tread Type | High-Performance UV-Resistant Polyurethane, Non-Marking, Mechanically Locked To Core |
| Core Type | Polyolefin |
| Bearing Type | Ball Bearing |
| Wheel Color | Maroon and Gray |
| Overall Height | 6-1/8" |
| Bolt Hole Pattern | - 1-3/4" x 2-7/8" slotted to 3" - 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore D 60 (+/-5) |
| Temperature Range | -20° F to 180° F |
Available SKU Options
Compare the configuration details below and select the SKU that matches your equipment.
| SKU | Configuration Details |
| 76PM50GM4306YY | Plate Size: 2-3/8" x 3-5/8" |
| 76PM50GM4311YY | Plate Size: 3-1/8" x 4-1/8" |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and - 2-3/8" x 3-5/8" - 3-1/8" x 4-1/8" plate with - 1-3/4" x 2-7/8" slotted to 3" - 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -20° F to 180° F.
