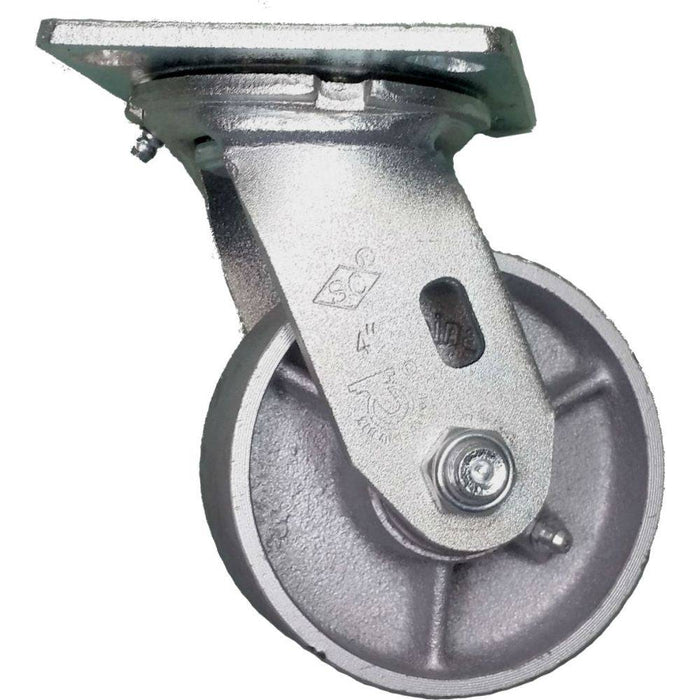

4" x 2" Semi-Steel Wheel Swivel Caster - 700 lbs. Capacity
4" x 2" Semi-Steel Wheel Swivel Caster - 700 lbs. Capacity
Product Overview
4" x 2" Semi-Steel Wheel Swivel Caster Semi-Steel / Cast iron offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centered ride, tread edge is machined round.
Tread & Core: Steel Alloy This caster is listed with wheel diameter 4", tread width 2", load capacity 700 Lbs., tread type Steel Alloy, and bearing type Roller Bearing.
Key Features
- Load Capacity: 700 Lbs.
- Wheel Diameter: 4"
- Tread Width: 2"
- Tread: Steel Alloy
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern
- Loads within the listed 700 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern
- Applications needing the listed Steel Alloy wheel or tread
Not Ideal For
Not ideal when the load exceeds 700 Lbs, the equipment requires a wheel other than 4" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 700 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 2" |
| Tread Type | Steel Alloy |
| Core Type | Steel Alloy |
| Bearing Type | Roller Bearing |
| Wheel Color | Silver |
| Overall Height | 5-5/8" |
| Swivel Radius | 3-1/4" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Tensile Strength | 30,000 PSI |
| Temperature Range | -45° F to 600° F |
| Model / MPN | 27SS40JS0417YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" slotted to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -45° F to 600° F.
