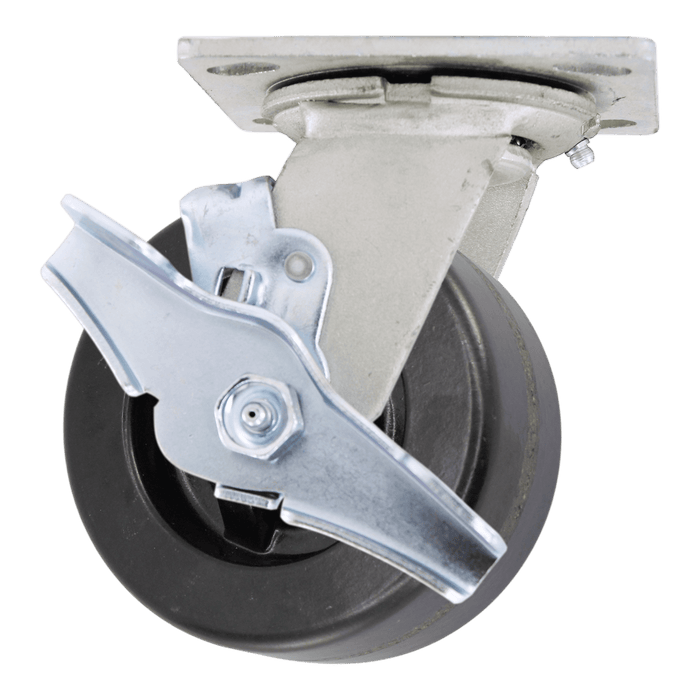

4" x 2" Phenolic Wheel Swivel Caster w/ Top Lock Brake - 800 lbs. Capacity
4" x 2" Phenolic Wheel Swivel Caster w/ Top Lock Brake - 800 lbs. Capacity
Product Overview
The Phenolic wheel is made of phenolic resin and macerated canvas, which provides smooth rolling and resistance to extreme temperature shifts. Phenolic wheels are resistant to oils, greases, and some liquids, but they should not be used on rough surfaces or in wet environments.
Tread & Core: Phenolic Resin Mixed With Mascerated Canvas This caster is listed with wheel diameter 4", tread width 2", load capacity 800 Lbs., tread type Phenolic Resin Mixed With Mascerated Canvas, and bearing type Roller Bearing.
Key Features
- Load Capacity: 800 Lbs.
- Wheel Diameter: 4"
- Tread Width: 2"
- Tread: Phenolic Resin Mixed With Mascerated Canvas
- Bearing: Roller Bearing
- Mounting Plate: 4" x 4-1/2"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Loads within the listed 800 Lbs rating
- Equipment using the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern
- Applications needing the listed Phenolic Resin Mixed With Mascerated Canvas wheel or tread
Not Ideal For
Not ideal when the load exceeds 800 Lbs, the equipment requires a wheel other than 4" diameter by 2" tread width, the mounting does not match the listed 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern, or a different brake or lock style is required instead of Top Lock Brake.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 800 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 2" |
| Tread Type | Phenolic Resin Mixed With Mascerated Canvas |
| Core Type | Phenolic Resin Mixed With Mascerated Canvas |
| Bearing Type | Roller Bearing |
| Wheel Color | Black |
| Overall Height | 5-5/8" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" to 3" x 3" |
| Bolt Hole Diameter | 3/8" |
| Lock Type | Top Lock Brake |
| Durometer | Shore D 96 (+/-5) |
| Temperature Range | -50° F to 250° F |
| Model / MPN | 27PH40JB0417TY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 4" x 4-1/2" plate with 2-5/8" x 3-5/8" to 3" x 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, bearing or bore, and brake or lock style shown in Product Details against the equipment being fitted.
What brake or lock is included?
The source lists the lock or brake configuration as Top Lock Brake.
