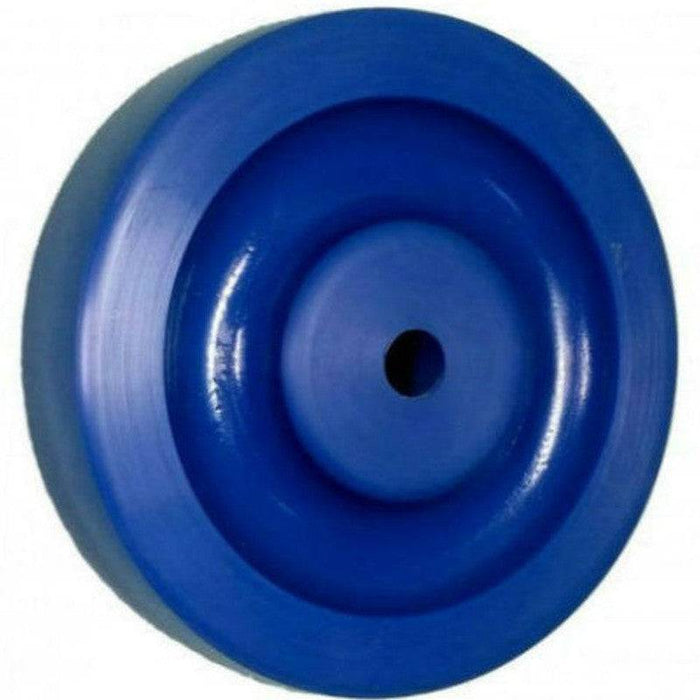

4" x 1-1/4" DuraLastomer Wheel - 400 lbs. Capacity
4" x 1-1/4" DuraLastomer Wheel - 400 lbs. Capacity
Product Overview
The Duralastomer wheel is corrosion-resistant, making it a great choice for wheels that get need to be washed down.
Tread & Core: Solid Cast Polyurethane Elastomer, Non-Marking This replacement wheel is listed with wheel diameter 4", tread width 1-1/4", load capacity 400 Lbs., tread type Solid Cast Polyurethane Elastomer, Non-Marking, and bearing type Plain Bore (no bearing). Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 400 Lbs.
- Wheel Diameter: 4"
- Tread Width: 1-1/4"
- Tread: Solid Cast Polyurethane Elastomer, Non-Marking
- Bearing: Plain Bore (no bearing)
- Temperature Range: -50° F to 180° F
Ideal For
Choose this product if you need:
- A replacement wheel matching the listed 4" diameter and 1-1/4" tread width
- Loads within the listed 400 Lbs rating
- Applications matching the listed 4" x 1-1/4" wheel dimensions
- Applications needing the listed Solid Cast Polyurethane Elastomer, Non-Marking wheel or tread
Not Ideal For
Not ideal when the load exceeds 400 Lbs, the equipment requires a wheel other than 4" diameter by 1-1/4" tread width, the axle or bearing requirement does not match Plain Bore (no bearing), or the operating temperature is outside -50° F to 180° F.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, and temperature range match the wheel required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 400 Lbs. |
| Wheel Diameter | 4" |
| Tread Width | 1-1/4" |
| Tread Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Core Type | Solid Cast Polyurethane Elastomer, Non-Marking |
| Axle / Bore Diameter | 1/2" |
| Hub Length | 1-9/16" |
| Bearing Type | Plain Bore (no bearing) |
| Wheel Color | Blue |
| Durometer | Shore D 60 (+/-5) |
| Temperature Range | -50° F to 180° F |
| Model / MPN | SU40GL83 |
Frequently Asked Questions
What is this product used for?
Use it when you need a replacement wheel matching the listed 4" diameter and 1-1/4" tread width.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -50° F to 180° F.
