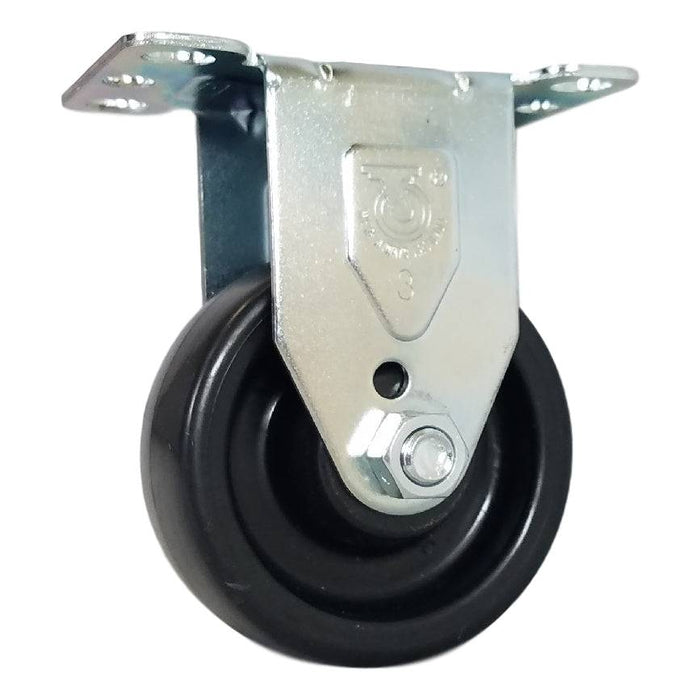

3" x 1-1/4" Polyolefin Wheel Rigid Caster Stainless Steel - 300 lbs. Capacity
3" x 1-1/4" Polyolefin Wheel Rigid Caster Stainless Steel - 300 lbs. Capacity
Product Overview
The polyolefin wheel is economical and lightweight with a high load capacity. This hard wheel is highly resistant to organic solvents, oil, grease, and most chemicals, acids, and cleaning solutions.
Tread & Core: Solid Cast Polyolefin This caster is listed with wheel diameter 3", tread width 1-1/4", load capacity 300 Lbs., tread type Solid Cast Polyolefin, and bearing type Plain Bore. Before ordering, verify the listed wheel dimensions, load capacity, bore or bearing, hub length, material, temperature range, and any mounting requirements against the exact caster assembly, axle, equipment clearance, and operating environment being fitted.
Key Features
- Load Capacity: 300 Lbs.
- Wheel Diameter: 3"
- Tread Width: 1-1/4"
- Tread: Solid Cast Polyolefin
- Bearing: Plain Bore
- Mounting Plate: 2-3/8" x 3-5/8"
Ideal For
Choose this product if you need:
- A caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Loads within the listed 300 Lbs rating
- Equipment using the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern
- Applications needing the listed Solid Cast Polyolefin wheel or tread
Not Ideal For
Not ideal when the load exceeds 300 Lbs, the equipment requires a wheel other than 3" diameter by 1-1/4" tread width, the mounting does not match the listed 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern, or a brake or swivel lock is required but not listed.
Product Details
Review the product details below to confirm the wheel diameter, tread width, load capacity, wheel or tread material, bearing, mounting plate, and bolt-hole pattern match the caster required for your equipment.
Shared Product Details
| Brand | Durable Superior Casters |
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 3" |
| Tread Width | 1-1/4" |
| Tread Type | Solid Cast Polyolefin |
| Core Type | Plain Bore |
| Bearing Type | Plain Bore |
| Wheel Color | Black |
| Overall Height | 4-3/16" |
| Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" slotted to 3" |
| Bolt Hole Diameter | 5/16" |
| Durometer | Shore D 70 (+/-5) |
| Temperature Range | -20°F to 180°F |
| Model / MPN | 74PO30GB8206YY |
Frequently Asked Questions
What is this product used for?
Use it when you need a caster matching the listed wheel specifications and 2-3/8" x 3-5/8" plate with 1-3/4" x 2-7/8" slotted to 3" bolt-hole pattern.
What should I check before ordering?
Confirm the wheel diameter, tread width, load capacity, mounting dimensions, and bearing or bore shown in Product Details against the equipment being fitted.
What temperature range is listed?
The original product data lists a temperature range of -20°F to 180°F.
